Automatic Auto Transmission Fluid Oil Exchanger ATF Machiner

Auto Fluid Transmission Cleaner & Oil Exchanger Machine


An Auto Fluid Transmission Cleaner & Oil Exchanger Machine is a device that exchanges automobile transmission oil. The device recovers and measures the old oil, and at the same time fills the same weight of new oil into the automobile, keeping the amount of automobile automatic transmission oil unchanged.


Automatic transmission development so far, the internal electronic and hydraulic control has become extremely complex, so regular maintenance of automatic transmission is particularly important. Generally speaking, the period of replacing automatic transmission fluid is recommended by automobile manufacturers to be about 60,000 to 80,000 kilometers or 2 to 3 years, and not replacing the automatic transmission fluid in time will directly affect the performance of the vehicle, fuel consumption and even the service life of the automatic transmission.

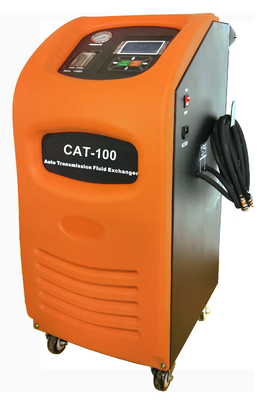

CAT-100 Auto Fluid Transmission Cleaner & Oil Exchanger

Characteristic:(Reliable, Stable, Durable)
1.Controlled by solenoid valve to avoid error.
2.Double electronic scale,equal replacement.
3.Self flushing pipeline for the use of different type ATF
4.Be with friendly interface and operating simple.
5.Can be cusiomized

Functions:(Cleaning.Exchanging)
1.Standby cycle
2.Self-check fiow direction
3.Auto add cleanser(only CAT-200)
4.Flushing function
5.Equivalent exchange
6.ATF adjustment
7.lsothemal replacement(only CAT-200)
8.Tank empty.
9.Self-cleañing

Parameter:(Voltage Pressure)
Voltage:DC12V(AC220V customizable)
Power input.180/250W
Pressure max.8bar
Load cell:30kg
Work hoses:2.5m*2
Tank :20L*2
Cleanser bottle:500ml(only CAT-200)
LCD dsplay:240"128
Drain hose:1.5m
Size(LxWxH):730x570x1250mm
Gross weight:75/80kg
