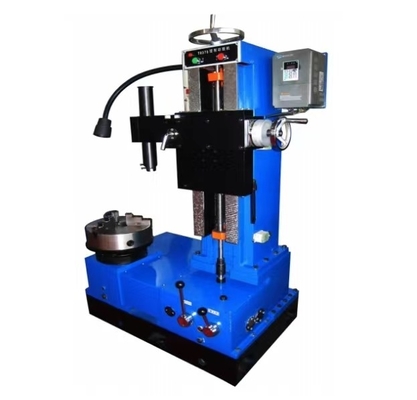

Repairing 8" 320mm Disc Drum Brake Lathe Machine BDL-837O Brake Disc Lathe

Disk brake lathe BRAKE DRUM LATHE for repairing 8'’(320mm)

The feature of Disk brake lathe :

1.Controlled by the frequency converter, the spindle speed can beinfinitely variable during a certain range and also be adjustedfreely with just a knob when not stopping the car.

2.It is suitable for the brake drum and pads of big trucks.

3.It adopts the big base and has solid structure.

4.It has tool holder stop device and ensure the safety.

5.It is equipped with standard clamps to be convenient for installinghubless brake drum and make the cutting depth to 320mm.

6.The full set of adapters will meet the demands of various vehicles.

7.It is equipped with various sets of adapters for the customers.

8.Special adapters can be customized.

9.It is the favorable equipment for the bus company as well as the big medium repairing factory.

Why repairing brake drums?

Brake pedal dithering within the certain drive mileage after new car has driven for several hundred of miles or replacing new brake dise, the brake pump will push back caused by the run out tolerance of the brake disc end, which may cause periodical hydraulic push-back effect. Additionally, the internal stress of the brake disc will release caused by the high temperature from the pulse brake,and the brake pedal will dither and steering wheel will vibrate.

Rust and corrosion the brake dise will rust after the car is stored for a long period, Additionally.as a result of salt corrosion, the surface of brake disc will be rough and unsmooth, which mayinfluence the brake effect.

Brake deviation-caused by road dust, oil, brake scurf and basic rust which may cause different fricrion coefficient coapared with the original surface, therefore, the friction foree of two wheelswill be different, and cause brake deviation and high noise.

Drum brake: strong braking foree but bad heat dispersion, when long-time braking, the surface will be unsmooth due to the cast iron drum material.

The main specifications of Disk brake lathe :
