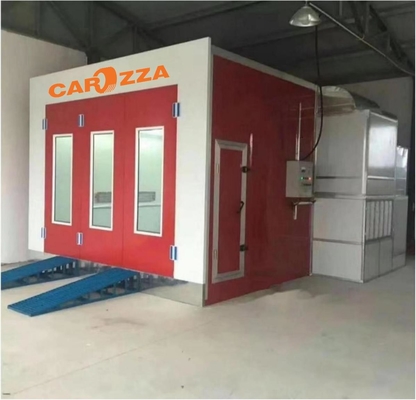

Name: EPS Automotive Paint Booth Automotive Spray Booth 7000×5356×3400mm
Brand: CAROZZA TECH Co., Ltd
SKU: ECH-Series
Availability: InStock

MOQ:	1
Price:	USD
Standard Packaging:	cartons
Delivery Period:	10-15 days
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	100 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CAROZZA

Certification

Model Number

ECH-Series

Vehicle Type:

Car

Overall Dimension (mm):

7000×5356× 3400

Inner Dimension (mm):

6900×4000× 2650

Width Of The Door For Vehicle Entrance(m):

Height Of The Door For Vehicle Entrance(m):

2.6

Steel Plate Thickness (mm):

0.426

Minimum Order Quantity:

Price:

USD

Packaging Details:

cartons

Delivery Time:

10-15 days

Payment Terms:

L/C, D/A, D/P, T/T

Supply Ability:

100 pcs/Month

Highlight:

EPS Automotive Paint Booth

EPS Automotive Spray Booth

Product Description

Automotive Paint Booth / Car Paint Oven Spray Booth 7000×5356× 3400

The ferature of ECH-Series:
Paint Booth

1.Stronger EPS Colorful stee skin board

2.Galvanized steel sheet in basement floor to prevent rust

3.Diferent biower to fit different motor and booth design

4.Unique larger square air fltering material to make cieaner air

5.High quality ltaly origina burmer and optiona gas burner

6.Optional inner ramp design to save more space for workshop

7.Allimode which equipped with exhaust fan with environmental

system containing actve carbon and fiberglass filter layer

8.Amercan pressure Gauge and Switzerland origina "Bellmo" auto-damper

Comparison:
	ECH-101	ECH-121	ECH-201	ECH-301	ECH-401	ECH-402
Vehicle Type	Car	Car	Car	Car	Mini Bus	Bus
Overall Dimension (mm)	7000×5356× 3400	7000×5556× 3400	7000×5356× 3400	7000×5356× 3400	9146×6396× 4450	15156×6906× 5800
Inner Dimension (mm)	6900×4000× 2650	6900×4000× 2650	6900×4000× 2650	6900×4000× 2650	9000×4500× 3500	15000×5000× 5000
Width of the door for Vehicle Entrance(m)	3	3	3	3	3.3	4
Height of the door for Vehicle Entrance (m)	2.6	2.6	2.6	2.6	3.4	4.5
Steel Plate Thickness (mm)	0.426	0.426	0.426	0.426	0.476	0.476
Filtrated area(m²)	17.96	17.96	17.96	17.96	32.1	51.7
Air Flow volume (m³/h)	25000	25000	25000	25000	4000C	60000
Air Velocity within Booth(m/s)	≥0.3m/s	≥0.3m/s	≥0.35m/s	20.35m/s	≥0.25m/s	≥0.25m/s
Ventilation times (times/h)	260	260	320	320	350	352
Working temperature (℃)	60-80℃	60-80℃	60-80℃	60-80℃	60-80℃	60-80℃
Oil Consumption (kg/set)	4-5KG/vehicle	4-5KG/vehicle	4-5KG/vehicle	4-5KG/vehicle	6-10KG/vehicle	10-12KG/vehicle
Insulation Material of wall panel	50mm thick EPS	50mm thick EPS	50mm thick EPS	50mm thick EPS	70mm thick EPS	70mm thick EPS
Power (kw)	9.5	10	15.7	18.3	29.5	49
Main blower	Inlet:1*7.5Kw no outlet	Inlet:2*4KW, no outlet	Inlet:17.5KW, outlet:15.5kw	Inlet:17.5KW, outlet:17.5kw	Inlet:27.5KW, outlet:111KW	Inlet:45.5KW outlet:211KW
Environmental protection device	No,direct outlet	No,direct outlet	With environmental cabinet containing active carbon and fiberglass filter layer	With environmental cabinet containing active carbon and fiberglass filter layer.	With environmental cabinet containing active carbon and fiberglass filter layer	With environmental cabinet containing active carbon and fiberglass filter layer.
Nether lighting	without	without	With 16pc of 36W lamp tubes	With 32pc of 36W amp tubes	With 32pc of 36W lamp tubes	With 56pc of 36W lamp tubes
